ICOM IC-M25 VHF HANDHELD
Tính năng

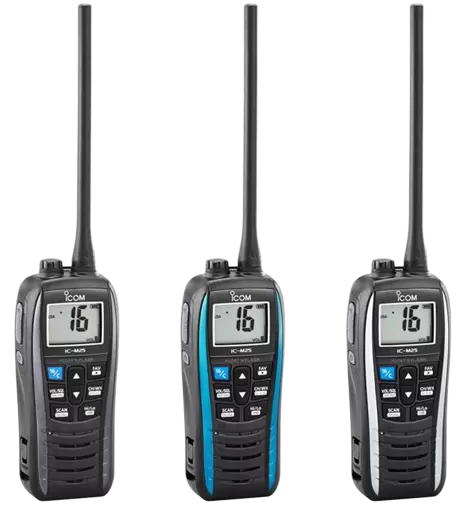

Three color options plus great features and style characterize the Icom IC-M25 marine VHF radio transceiver, which floats and flashes when dropped into the water. Sporting a slim design, this handheld device has the lightest body on the market for a .just 7.8oz floating VHF radio transceiver. New for an Icom marine handheld, this radio requires a USB connector for convenient charging from multiple electronic devices!
Large LCD with large channel numbers and status icons
Front panel buttons provide simple and straightforward operation
The AquaQuake™ drainage function removes water from the speaker
4-step battery life indicator
Weather channel with weather alerts
Dual function/Tri-watch
Instant access to Channel 16 or programmed call channels
Favorite channel function
Noise opening screen function
Automatic scanning function
Automatic LCD backlight
USB charger, BC-217SA *
Back bowl MB-133
Antenna, FA-SC59V
Bracelet
Built-in battery USB charger not provided or may vary depending on version.
Download: Brochure
Frequency range: Transmit 156.025-157.425MHz, Receive 156.050-163.275MHz
Available channel groups: INT, USA, CAN, WX channels
Emission type: 16K0G3E (FM)
Supply voltage: 3.7V DC nominal
Current consumption: Output 2.3A
Receive (Internal Speaker / External Speaker): 300mA / 200mA (maximum audio)
Operating temperature: -20°C to +60°C; -4°F to +140°F
Antenna impedance: 50Ω
Dimensions (W × H × D): 56.6 × 134.2 × 30.5mm;
Weight: 220g; 7.8oz (With FA-SC59V and MB-133)
Broadcast part
Power output: 5W (approx.) / 1W
Maximum frequency deviation: ± 5.0kHz
Frequency stability: ±10ppm
Spurious emissions: -68dBc typical
Adjacent channel selectivity: 70dB
Residual modulation: 40dB
Receiver section
Sensitivity: 0.25μV typical (at 12dB SINAD)
Squelch sensitivity: 0.25μV typical (at threshold)
Adjacent channel selectivity: 70dB typical
Spurious response suppression: 70dB typical
Intermodulation response suppression: 70dB typical
Audio power (at 10% distortion): Typical 550mW internal speaker (12Ω load)
Typical 300mW speakerphone (4Ω load)
CO, CQ
