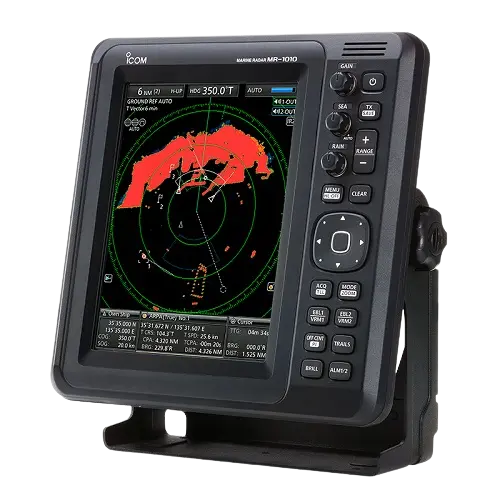

ICOM MR-1010RII

Tính năng

The simplified ARPA function helps to prevent a collision risk with other vessels or objects. Up to five targets can be automatically tracked on the radar echo, when a target enters within the set watch area, (or up to ten targets can be tracked when manually set). By selecting one of the targets, the target information such as position, course, speed, CPA, TCPA, bearing, and distance is shown on the lower side of the display. When the target enters within the CPA and TCPA limits, an alarm message is displayed with a beep alarm.

Download: Brochure

Giá bán: Liên hệ

Thông số kỹ thuật
Chứng chỉ

Display type		10.4-inch Color TFT LCD
Resolution		480 × 640 dots
Minimum range		25 m; 82 ft (at 1⁄8 NM range)
Maximum range		36 NM
Range scales	NM	1⁄8, 1⁄4, 1⁄2, 3⁄4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 32, 36
Range scales	km	1⁄4, 1⁄2, 3⁄4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 32, 36, 48
Preheat time		90 seconds
Power supply		10.2–42 V DC
Power consumption (at zero wind velocity)		55 W (approximately)
Usable temperature range		−15°C to +55°C; +5°F to +131°F
Input data format		NMEA 0183, N+1, AUX, IEC61162-2
Output data format		NMEA 0183

Scanner Unit

Type	60 cm; 2 ft radome scanner
Rotation speed	24, 36 rpm typ.
Horizontal beamwidth	4° typ.
Vertical beamwidth	22° typ.
Sidelobe	−22 dB typ.
Usable temperature range	−25°C to +70°C; −13°F to +158°F
Usable humidity range	Less than 95% (at 40°C; +104°F)
Frequency	9410 MHz ±30 MHz
Modulation	P0N
Peak output power	4 kW
Pulse-width/repetition rate	80 ns/2160 Hz, 80 ns/1440 Hz, 250 ns/1440 Hz, 350 ns/1440 Hz, 900 ns/720 Hz
Modulator	FET switching
Intermediate frequency	60 MHz (EUR Version), 250 MHz (EXP Version)
IF bandwidth	10 MHz / 3 MHz (EUR Version), 15 MHz / 3 MHz (EXP Version)
Tuning	Auto/manual selectable
Supplied system cable	15 m; 49.2 ft (OPC-2341)
