VHF

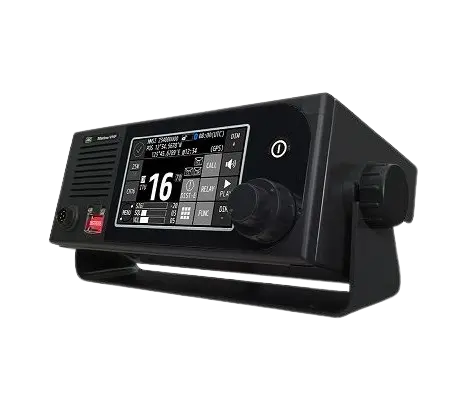

JRC JHS-800S
Tính năng
Our new 5-inch touch screen controlled Class A VHF radio (JRC model JHS-800S) featuring a uniform, corporate design with manual-free operation. The all-in-one unit (control unit with speaker, radiotelephone and DSC) has high sensitivity performance, Hi-Fi output and protection rate of IP56.
Comply with IMO standards: MSC.1/Circ. 1460/Rev.3 (October 18, 2021)
- Easy operation
- Up to 4 remote controllers
- 5-inch color LCD touch display
- All-in-one design
- Class A DSC complying latest GMDSS requirement
- New designed speaker and handset
- High quality sound (Hi-Fi audio)
- Bluetooth® interface for wireless speaker mic
- Easy to install by compact design
- Waterproof design (IP56)
Download: Brochure
Giá bán: Liên hệ
Hoặc qua:
| Equipment name | Marine VHF radiotelephone | |
| Model | JHS-800S | |
| Standard | IMO resolution A.694 ( 17 ) ( 1991 ) IMO resolution A.803 ( 19 ) ( 1995 ) IMO resolution MSC.68 ( 68 ) ( 1997 ) IMO MSC / Circ.862 ( 1998 ) IEC 60945 Ed.4.0 ( 2002-08 ) |
|
| Display | 5 inch TFT color LCD, 800 × 480 dots ( WVGA ), Brightness: 1000 cd/m2 ( Typ. ) |
|
| Communication modes | Simplex and semi-duplex press talk system | |
| Transmission frequency | Simplex / semi-duplex : 155.000 – 163.500 MHz | |
| Reception frequency | Simplex / semi-duplex : 155.000 – 163.500 MHz | |
| Antenna output power | 6 – 25 W ( when reducing : 0.5 – 1 W ) | |
| Modulation method | FM / FSK | |
| Type of emission | Radiotelephone communications : F3E / G3E DSC / ATIS : F2B / G2B |
|
| Channel spacing | 25 kHz | |
| Frequency accuracy | ±10 × 10-6 or less | |
| Antenna impedance | 50 Ω unbalanced | |
| DSC CH70 recevier | Receiver : built in Frequency : 156.525 MHz |
|
| Number of channels | ITU : Maximum 65 ch USA : Maximum 65 ch Canada : Maximum 65 ch Inland waterway : Maximum 65 ch Private : Maximum 200 ch ( channel steps : 25 kHz, 12.5 kHz, 10 KHz ) Weather : Maximum 10 ch Memory : Maximum 10 ch |
|
| Power supply voltage | 24 VDC : 4.5 A | |
| Power consumption ( 24 VDC input ) |
25 W when transmitting : Maximum 4.5 A / 108 W When receiving : Maximum 1.5 A / 36 W |
|
| Interface | ||
| Ports | IEC 61162 – 1 : 1 port For GPS information input IEC 61162 – 1/2 : 1 port For AIS information input, brightness control and BAM communication LAN ( IEC 61162 – 450 compliant ) : 1 port For radar, ECDIS, RMS ( VDR ), GPS, AIS, DMC, brightness control, printer and BAM communication Voice line output ( 600 Ω, balanced ) : 1 port For VDR / S-VDR connection Voice line output ( 600 Ω, unbalanced ) : 1 port For external speaker connection |
|
| Audio output | Built-in speaker ( 4 Ω ) : 6 W or more Handset ( 150 Ω ) : 1 mW or more |
|
| NMEA0183 version | Ver1.5 / 2.0 / 2.3 | |
| NMEA0183 input sentence | ALR, GGA, GLL, GNS, RMC, VDM, VDO, ZDA | |
| Environment | ||
| Operating temperature | -25℃ to +55℃ | |
VR, CE
