Tính năng
The JLN-740 series is a Doppler Speed Log that complies with the IMO MSC.96(72) standard, required on all international cruise ships exceeding 300 GT. Boasting unprecedented accuracy when measuring speed, the JLN-740 is also installed with our company's exclusive bubble detection feature, which notifies you when measurement accuracy is impaired. reduced by contact with air bubbles. A model with a color LCD touch screen for the primary and secondary displays, allowing you to view important information and adjust brightness in all displays from one location, is also available.
The JLN-740 series uses digital signal processing, combined with optimization of existing speed measurement waveforms and the reliability of bilge mounting, which has resulted in highly accurate water speed measurements. up to 0.03kn or 0.3% in all models * 1 . The accuracy of the information allows for high fuel economy rates, which means faster journeys and less waste. Along with improved speed measurements, the range also features significantly improved vessel speed tracking, relaying all the information you need for precise navigation while docked.
Download: Brochure
| Name | DOPPLER LOG | |||
|---|---|---|---|---|
| Model | JLN-740A | JLN-740N | JLN-741A | JLN-741N |
| IMO approved | ✓ | |||
| Operating system | Dual-beam pulse Doppler system | |||
| Operation frequency | 2MHz | |||
| Measurement scale | -10.00 to 40.00kn | |||
| Sailing display range | Model A : 0 to 999999.99NM, Model N : 0 to 99999.99NM (NWW-7 : to 9999.99NM with Distance Counter) | |||
| Water speed | 3.0 m deeper than the transducer surface | |||
| Ship speed accuracy | 1 % of the speed of the ship, or 0,1 kn whichever is greater | |||
| Total distance accuracy | 1 % of the distance run by the ship in 1 h or 0,1 nautical miles in each hour whichever is the greater. | |||
| Speed indication | kn or m/s | |||

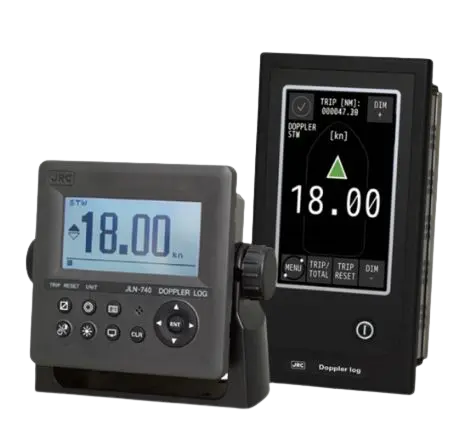

| Display | Touch panel 5.1 inch-LCD (480 x 800 pixels) |
4.5inch monochrome LCD |
Touch panel 5.1 inch-LCD (480 x 800 pixels) |
4.5inch monochrome LCD |
| Input interface (IEC-61162-1) |
GPS: RMC, ZDA (clock adjustment) | - | ||
| Signal output | 8 ports NMEA0183 Ver1.5, 2.1, 2.3, 4.0 or IEC61162-1 : VBW, VLW |
2 ports IEC61162-1 : VBW, VLW |
1 ports IEC61162-1 : VBW, VLW |
|
| I/O interface | Analog display : 2 ports | - | ||
| Log pulse : 2 ports (Photocoupler signal 200pulse / NM, Max. 30V, 10mA) |
- | |||
| Distance Counter (NWW-7) : 1port | - | |||
| Remote Display (NWZ-650SDR /NWZ-840SDR), Multi Information Display (NWZ-4610) : Total 2 ports |
- | |||
| LAN I / O for RMS : 1 ports | - | |||
| Alarm (Power · Speed · System) output : 1 port each | - | |||
| Serial I /O for alarm : 1 port | - | |||
| Dimmer : serial I / O:1 port · Analog Input : 1 port | - | |||
| Power supply voltage | AC100/ 230V (±10%) | |||
| Power consumption | AC100V : 50W (60VA) Less than, AC230V : 50W (150VA) Less than | |||
| Environmental requirements (excl. transducer) |
Temperature range : -15 to 55℃ (operating) Relative humidity : 0 to 93% (non condensing) |
|||
