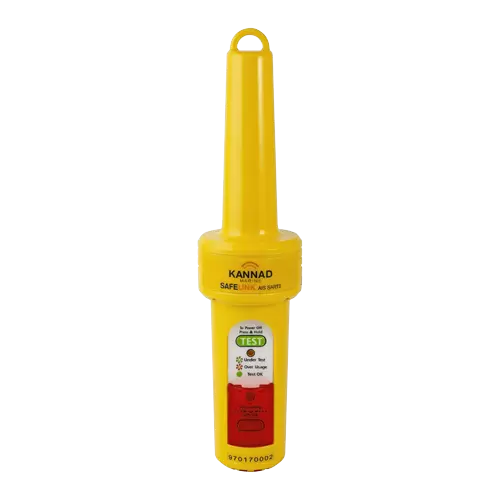

KANNAD SafeLink AIS SART2
Tính năng
SafeLink AIS SART2 is a manually deployed lifeboat AIS search and rescue transmitter (AIS SART) designed for use on life rafts or rescue vessels. It meets IMO SOLAS requirements and is a replacement for the old SART radar.
Optional ship or survival ship
Waterproof up to 10m
Floating/floating
Rugged, compact and lightweight
Minimum operating battery life is 96 hours
Battery life 6 years
Visual indication of operations
Integrated testing facility
Installation options — Inside/Outside
Transmit GPS coordinates
Ability to interact with AIS users
Includes telescopic mounting pole
Comes with protective carrying bag
Download: Brochure
|
VHF TRANSMITTER |
|
|
Operating Frequency |
AIS 1, 161.975MHz |
|
Data Rate |
9,600bps |
|
Bandwidth |
25 KHz |
|
Power Output |
1W EIRP |
|
AIS Message Type |
Message 1, Message 14 |
|
Modulation |
GMSK |
|
Antenna |
Integrated by PCB |
|
GNSS RECEIVER |
|
|
Receiving Channels |
48 channels |
|
Acquisition Sensitivity |
(-)159 dBm |
|
Tracking Sensitivity |
(-)159 dBm |
|
Position Accuracy |
< 2.5 m Autonomous & SBAS |
|
BATTERY |
|
|
Type |
Primary Lithium (not rechargeable) |
|
Operating Life |
96 hours minimum |
|
Storage |
6 years |
|
Service |
Replaceable |
|
ENVIRONMENT |
|
|
Operating temperature |
-20°C to +55°C |
|
Storage temperature |
-30°C to +70°C |
|
Waterproof |
Immersion to 10m |
|
Buoyancy |
Floats |
|
Exterior Finish |
Highly visible Yellow |
|
Compass safe distance |
Standard Magnetic – 0.6m |
|
PHYSICAL |
|
|
Max Diameter (Main Body ) |
70 mm |
|
Length (Main Body) |
300 mm |
|
Weight (Main Body) |
283g (Battery included) |
|
Length (Pole) |
1050mm (Extended) |
|
Weight (Pole) |
300g |
|
Total Weight (Storage Package) |
1.08kg |
