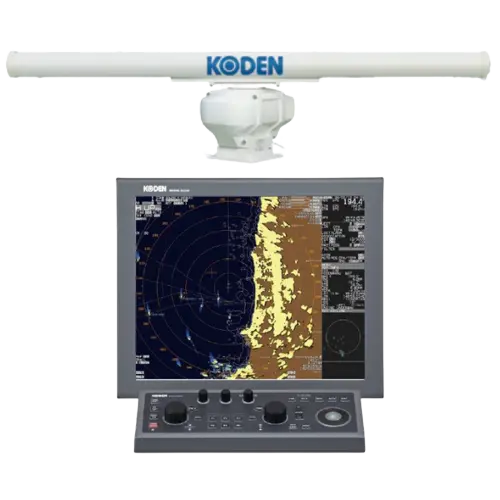

KODEN MDC-7912P
Tính năng
- Made in Japan.
- IMO certified.
- Improvement of function.
- Clear image with High-speed sampling in short range.
- Auto GAIN with simple operation.
- Improved visibility by auto STC.
- Simple and easy operation by remote tracball via USB.
- TT(ARPA) function as standard: Built-in TT(ARPA) tracks up to 100 targets.
- Selectable auto acquisition or manual acquisition.
- AIS interface as standard: Built-in AIS interface for displaying up to 1000 targets.
- Map Overlay.
- C-Map chart (NT MAX)* can be overlaid on the radar screen to provide clear radar pictures of coastlines, buoys, and other features. C-Map NT MAX "World Wide" back ground chart is built-in as standard.
- Owner supplied. Basic chart information only. Extra features of C-Map such as photo indication are not available.
- Keyboard operation unit.
- The radar has a separate operation unit, providing users with a choice of installation locations.
Download: Brochure
- Antenna type: Scanning blade.
- Blade length: 1.22m or 1.83m or 2.74m.
- Transmitter power (max): 12kW.
- Transmit frequency: 9410 MHz +/- 30 MHz.
- Horizontal beam: 1.22m: 1.80 or 1.83m: 1.20 or 2.74m: 0.80
- Stand up: 1.22m and 1.83m: 220 or 2.72m: 250
- Rotation speed: 24rpm.
- Scale accuracy: 8 m or 1% of scale in use, whichever is greater.
- Minimum detection distance: Within 40m.
- Scale resolution: Within 40m.
- Warm-up time: 2 minutes.
- Pulse Width: 0.08 us , 0.15 us , 0.3 us , 0.6 us , 0.8 us , 1.2 us.
